Physics past questions: JAMB UTME 2022

40 objective questions, with answers. Free to read and practise.

The other JAMB Physics papers (1978–2020) and a worked explanation for every answer are in the Exam Pass, ₦5,000 once. Get the Exam Pass

Sit this paper

40 questions, one at a time, marked as you go or at the end. No account needed.

  1. 1.
    A bar magnet is divided into two pieces, which of the following statement is correct?
    1. A.two new magnets are created
    2. B.the magnetic field of each separate piece becomes stronger
    3. C.the electric field is created
    4. D.the bar magnet is demagnetized
    Show answer

    Answer: A two new magnets are created

    Discuss this question with other students
  2. 2.
    A bar magnet is placed near and lying along the axis of a solenoid connected to a galvanometer. The pointer of the galvanometer shows no deflection when?
    1. A.the magnet is moved towards the stationary solenoid
    2. B.there is no relative motion
    3. C.the magnet is moved away from the stationary solenoid
    4. D.the solenoid is moved away from the stationary magnet
    Show answer

    Answer: B there is no relative motion

    Discuss this question with other students
  3. 3.
    A car starts from rest and covers a distance of 40 m in 10 s. Calculate the magnitude of its acceleration
    1. A.3.20 ms
    2. B.0.25 ms
    3. C.0.80 ms
    4. D.4.00 ms
    Show answer

    Answer: B 0.25 ms

    Discuss this question with other students
  4. 4.
    A cell whose internal resistance is 0.55 delivers a current of 4 A to an external resistor. The lost voltage of the cell is?
    1. A.4.00 V
    2. B.2.20 V
    3. C.0.15 V
    4. D.8.00 V
    Show answer

    Answer: B 2.20 V

    Discuss this question with other students
  5. 5.
    A current of 0.5 A flows through a resistor when connected to a 40 V battery. How much energy is dispatched in 2 minutes?
    1. A.2400 J
    2. B.9600 J
    3. C.1500 J
    4. D.1200 J
    Show answer

    Answer: A 2400 J

    Discuss this question with other students
  6. 6.
    A magnet relay is a device used for?
    1. A.reading the magnitude of magnetic flux
    2. B.controlling another circuit carrying larger current
    3. C.turning in sports
    4. D.storing magnetic field
    Show answer

    Answer: B controlling another circuit carrying larger current

    Discuss this question with other students
  7. 7.
    A person standing waist-deep in a swimming pool appears to have short legs because of light?
    1. A.diffraction
    2. B.refraction
    3. C.reflection
    4. D.interference
    Show answer

    Answer: B refraction

    Discuss this question with other students
  8. 8.
    A reservoir is filled with liquid of density 2000 kgm . Calculate the depth at which the pressure in the liquid will be equal to 9100 Nm (g = 10 ms )
    1. A.0.262 m
    2. B.0.664 m
    3. C.0.819 m
    4. D.0.455 m
    Show answer

    Answer: D 0.455 m

    Discuss this question with other students
  9. 9.
    A semiconductor is formed by?
    1. A.co-ordinate bonds
    2. B.electrovalent bonds
    3. C.a substance free of bonds
    4. D.covalent bonds
    Show answer

    Answer: D covalent bonds

    Discuss this question with other students
  10. 10.
    A train of mass 1600 kg attains a speed of 25 ms in 20 seconds. The power developed in the engine is?
    1. A.2.5 KW
    2. B.80 KW
    3. C.25 KW
    4. D.50 KW
    Show answer

    Answer: C 25 KW

    Discuss this question with other students
  11. 11.
    A tuning fork having a frequency of 312 Hz emits a wave which has a wavelength of 1.10 m. Calculate the velocity of sound
    1. A.312.0 ms
    2. B.110.0 ms
    3. C.343.2 ms
    4. D.686.4 ms
    Show answer

    Answer: C 343.2 ms

    Discuss this question with other students
  12. 12.
    According to kinetic molecular model in gases,
    1. A.the particles are closely packed together; they occupy minimum space are usually arranged in a regular pattern
    2. B.the particles vibrate about fixed positions and are held together by the strong intermolecular bonds between them
    3. C.the molecules are very far apart and occupy all the spaces made available to them
    4. D.the particles occur in clusters with molecules slightly further apart
    Show answer

    Answer: C the molecules are very far apart and occupy all the spaces made available to them

    Discuss this question with other students
  13. Exam Pass 2027

    ₦5,000 once

    12 down. Want to know why each answer is right?

    This page gives you JAMB 2022. The Exam Pass explains every answer and opens JAMB Physics 1978–2020 too.

    • Every JAMB Physics paper back to 1978
    • A worked explanation for every answer
    • Timed mock exams and the AI tutor

    JAMB UTME starts 15 March 2027

    Until 31 July 2027. Bank transfer, card or USSD. Your pass opens in the app with the same email.

  14. 13.
    An isotope has an initial activity of 120 Bq. 6 days later its activity is 15 Bq. The half-life is?
    1. A.3 days
    2. B.2 days
    3. C.1 day
    4. D.4 days
    Show answer

    Answer: C 1 day

    Discuss this question with other students
  15. 14.
    An object 40 cm high is 30cm from the pin hole camera. If the height of the image formed is 20 cm. What is the distance of the image from the pin height?
    1. A.15 cm
    2. B.70 cm
    3. C.40 cm
    4. D.40 cm
    Show answer

    Answer: A 15 cm

    Discuss this question with other students
  16. 15.
    Consider the wave equation y = 5mm sin [1cm x - 60s t]. The wave number is?
    1. A.0.1 cm
    2. B.10cm
    3. C.1.0cm
    4. D.2cm
    Show answer

    Answer: C 1.0cm

    Discuss this question with other students
  17. 16.

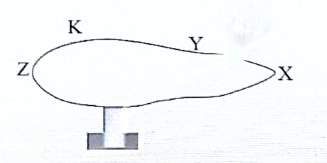

    For a pear-shaped conductor shown above, the concentration of charge on the outside is highest at?
    Diagram for this question
    1. A.X
    2. B.Z
    3. C.Y
    4. D.K
    Show answer

    Answer: A X

    Discuss this question with other students
  18. 17.
    If an object just begins to slide on a surface inclined at 30º to the horizontal,the coefficient of friction is?
    Diagram for this question
    1. A.√3
    2. B.
    3. C.
    4. D.
    Show answer

    Answer: C

    Discuss this question with other students
  19. 18.
    In order to view the sun, the most suitable instrument to use is?
    1. A.helioscope
    2. B.telescope
    3. C.stroboscope
    4. D.sun meter
    Show answer

    Answer: A helioscope

    Discuss this question with other students
  20. 19.
    In the formation of sea breeze, wind blows from?
    1. A.sky to land
    2. B.sea to sky
    3. C.land to sea
    4. D.sea to land
    Show answer

    Answer: D sea to land

    Discuss this question with other students
  21. 20.
    One of the following is a scalar quantity?
    Diagram for this question
    1. A.weight
    2. B.momentum
    3. C.potential energy
    4. D.displacement
    Show answer

    Answer: A weight

    Discuss this question with other students
  22. 21.
    The amount of energy required to change a kilogram of ice block into water without a change in temperature is?
    1. A.specific latent heat of fusion of ice
    2. B.specific heat capacity of ice
    3. C.heat capacity of ice
    4. D.specific heat of vaporization of ice
    Show answer

    Answer: A specific latent heat of fusion of ice

    Discuss this question with other students
  23. 22.
    The eclipse of the moon occurs when?
    1. A.the moon reflects the rays from the sun to the earth
    2. B.the moon comes exactly between the earth and the sun
    3. C.the earth comes exactly between the moon and the sun
    4. D.the sun comes exactly between the earth and the moon
    Show answer

    Answer: C the earth comes exactly between the moon and the sun

    Discuss this question with other students
  24. 23.
    The graph of pressure (P) against the reciprocal of the volume (I/V) in Boyles's law is a?
    1. A.hyperbola
    2. B.parabola
    3. C.curve
    4. D.straight line
    Show answer

    Answer: D straight line

    Discuss this question with other students
  25. 24.
    The gravitational pull on the moon is that of the earth. If a body weighs 6.0 N on the moon, what will be the weight on the earth?
    1. A.6.0 N
    2. B.5.0 N
    3. C.12.0 N
    4. D.36.0 N
    Show answer

    Answer: D 36.0 N

    Discuss this question with other students
  26. 25.
    The main factor which affects the speed of sound wave is the?
    1. A.properties of the medium
    2. B.amplitude of the sound wave
    3. C.intensity of the sound wave
    4. D.loudness of the sound wave
    Show answer

    Answer: A properties of the medium

    Discuss this question with other students
  27. 26.
    The mercury column in the barometer at notational atmospheric pressure has a height of?
    1. A.0.76 cm at see level
    2. B.760 cm at sea level
    3. C.7.6 cm at sea level
    4. D.76 cm at sea level
    Show answer

    Answer: B 760 cm at sea level

    Discuss this question with other students
  28. 27.
    The potential energy in an elastic string of force constant k, which has an extension X is?
    1. A.kX
    2. B.KX
    3. C.½KX
    4. D.½K
    Show answer

    Answer: C ½KX

    Discuss this question with other students
  29. 28.
    The relationship between the coefficient of linear expansion and volumetric expansion ( ) is-----------------
    1. A. =
    2. B. =
    3. C.3
    4. D. =
    Show answer

    Answer: C 3

    Discuss this question with other students
  30. 29.
    The secondary pigments consist of?
    1. A.blue, green, and violet
    2. B.yellow, green, and magenta
    3. C.magenta, yellow, and cyan
    4. D.red, green, and blue
    Show answer

    Answer: C magenta, yellow, and cyan

    Discuss this question with other students
  31. 30.
    The vapour pressure?
    1. A.increases non-linearly with measuring temperature
    2. B.increases linearly with increasing temperature
    3. C.decreases linearly with increasing temperature
    4. D.decreases non-linearly ith measuring temperature
    Show answer

    Answer: A increases non-linearly with measuring temperature

    Discuss this question with other students
  32. 31.
    Tyres are treaded to?
    1. A.increase weight of tyres
    2. B.increase friction
    3. C.increase its longevity
    4. D.look good
    Show answer

    Answer: B increase friction

    Discuss this question with other students
  33. 32.
    Water is not a good thermometric liquid because it?
    1. A.expands unevenly between 0 ºC and 4 ºC
    2. B.maintains fixed density
    3. C.has low freezing point
    4. D.wets glass
    Show answer

    Answer: A expands unevenly between 0 ºC and 4 ºC

    Discuss this question with other students
  34. 33.
    What quantity of heat is required to convert 20 g of ice at 0 ºC to water at the same temperature? (Specific latent heat of ice = 336 Jg )
    1. A.7.06 x 10 J
    2. B.5.38 x 10 J
    3. C.6.72 x 10 J
    4. D.1.35 x 10 J
    Show answer

    Answer: D 1.35 x 10 J

    Discuss this question with other students
  35. 34.
    When the plate area of a capacitor increases?
    1. A.the voltage can withstand increase
    2. B.the capacitance decreases
    3. C.the capacitance is unaffected
    4. D.the capacitance increases
    Show answer

    Answer: D the capacitance increases

    Discuss this question with other students
  36. 35.
    Which component of fiber-optic connector has a provision of entry for the fibre along with the fixation to connector housing?
    1. A.coupling device
    2. B.cable
    3. C.ferrule
    4. D.connector housing
    Show answer

    Answer: A coupling device

    Discuss this question with other students
  37. 36.
    Which expression gives magnetic flux?
    1. A.qVB sin
    2. B.
    3. C.BA cos
    4. D.-N
    Show answer

    Answer: C BA cos

    Discuss this question with other students
  38. 37.
    Which of the following is not a consequence of hydrogen bubbles covering the copper plate of a primary cell?
    1. A.formation of hydrogen bubbles on the electrode
    2. B.increase in the resistance of the cell
    3. C.local action
    4. D.polarization
    Show answer

    Answer: C local action

    Discuss this question with other students
  39. 38.
    Which of the following liquid is a poor conductor of electricity?
    1. A.Distilled water
    2. B.Tap water
    3. C.Sea water
    4. D.Drinking water
    Show answer

    Answer: B Tap water

    Discuss this question with other students
  40. 39.
    Which of these is a derived unit?
    1. A.Kilogram
    2. B.Metre
    3. C.Newton
    4. D.Second
    Show answer

    Answer: C Newton

    Discuss this question with other students
  41. 40.
    Which of these is a second-class lever?
    1. A.sugar tongs
    2. B.claw hammer
    3. C.plier
    4. D.wheelbarrow
    Show answer

    Answer: A sugar tongs

    Discuss this question with other students

Printing is turned off here to protect the question bank. Get the SmarTest app to study offline.

More free Physics papers

Exam Pass 2027

₦5,000 once

You have JAMB 2022. Get Physics 1978–2020 too.

The latest five years are free here. The Exam Pass adds every year we hold, a worked explanation for each answer and timed mock exams, on your phone and computer, offline.

  • Every JAMB Physics paper back to 1978
  • A worked explanation for every answer
  • Timed mock exams and the AI tutor

JAMB UTME starts 15 March 2027

Until 31 July 2027. Bank transfer, card or USSD. Your pass opens in the app with the same email.

  • Paid through PaystackWe never see or store your card.
  • Unlocked in minutesSign in with the email you paid with.
  • Ibora Digital Labs LimitedRegistered in Nigeria, Abuja.
  • A real team helpsChat with us on this site, or email.

Not ready to pay? The app is free to start.

Get the app
