Physics past questions: WAEC SSCE 2021

49 objective questions, with answers. Free to read and practise.

The other WAEC Physics papers (1988–2020) and a worked explanation for every answer are in the Exam Pass, ₦5,000 once. Get the Exam Pass

Sit this paper

49 questions, one at a time, marked as you go or at the end. No account needed.

  1. 1.
    A ball is swung in a horizontal circle of centre O with a constant speed. What is the direction of its acceleration?
    1. A.Away from O
    2. B.Along the Circumference of the circle
    3. C.Toward centre O
    4. D.Along a tangent to the circle
    Show answer

    Answer: C Toward centre O

    Discuss this question with other students
  2. 2.
    A current of 2A passes through a wire of resistance 4Ω for 3 minutes. Calculate the energy lost.
    1. A.960J
    2. B.1440J
    3. C.2880J
    4. D.48J
    Show answer

    Answer: C 2880J

    Discuss this question with other students
  3. 3.
    A force of 10 N, acting continuously, increases the kinetic energy of an object from 20.J to 60 J. Find the distance moved by the object.
    1. A.200m
    2. B.40m
    3. C.4m
    4. D.400m
    Show answer

    Answer: C 4m

    Discuss this question with other students
  4. 4.
    A heat sensitive resistor made of a semiconductor is called?
    1. A.thermometer
    2. B.thermostat
    3. C.thermistor
    4. D.thermopile
    Show answer

    Answer: C thermistor

    Discuss this question with other students
  5. 5.
    A man weighing 200 N runs up a staircase in 5s. If the height of the staircase is 9 m, calculate the power of the man.
    1. A.1000 W
    2. B.360 W
    3. C.40 W
    4. D.1800 W
    Show answer

    Answer: B 360 W

    Discuss this question with other students
  6. 6.
    A metallic sphere is heated from 27°C to 200°C Without change of state. Which of the following changes would have resulted from the heating?
    1. A.No changes occur in its volume and density
    2. B.Its volume increases and its density increases
    3. C.Its volume increases and its density decrease
    4. D.Its volume increases without a change in density
    Show answer

    Answer: C Its volume increases and its density decrease

    Discuss this question with other students
  7. 7.
    A note produced by an instrument is distinguished from a similar note produced by another instrument by the?
    1. A.intensity,
    2. B.pitch
    3. C.overtones
    4. D.loudness
    Show answer

    Answer: C overtones

    Discuss this question with other students
  8. 8.
    A radioactive material has a half-life of 1.0 hour If 200.0 g of it was present at 6 a.m. on a certain day, how many grams will have decayed by 9 a.m. on the same day?
    1. A.175.0 g
    2. B.150.0 g
    3. C.100.0 g
    4. D.187.5 g
    Show answer

    Answer: A 175.0 g

    Discuss this question with other students
  9. 9.
    A rotating disc contains a set of holes in a circle. An air jet is directed onto the holes and a note of frequency 480 Hz is produced. If the number of holes is 20, calculate the speed of rotation of the disc.
    1. A.10 rev/s
    2. B.20 rev/s
    3. C.24 rev/s
    4. D.8 rev/s
    Show answer

    Answer: C 24 rev/s

    Discuss this question with other students
  10. 10.
    A stone is thrown horizontally with initial velocity 15m/s from a tower 20 m high. How long does it take to reach the ground? [g= 10m/s
    1. A.2s
    2. B.4s
    3. C.5s
    4. D.1s
    Show answer

    Answer: A 2s

    Discuss this question with other students
  11. 11.
    A student wishes to measure the potential difference across a resistor,R. She has a galvanometer,G and some connecting wires. What else does she need?
    1. A.high value resistor connected in parallel with G
    2. B.. low value resistor connected in parallel with G low value
    3. C.resistor connected in series with G
    4. D.high value resistor connected in series with G
    Show answer

    Answer: D high value resistor connected in series with G

    Discuss this question with other students
  12. 12.
    A wire of cross-sectional area 2π x 10 m and resistivity 1.1 x 10 Ω m, has a resistance of 21Ω. Calculate the length of the wire. [π=22/7]
    1. A.180 m
    2. B.140 m
    3. C.120 m
    4. D.240 m
    Show answer

    Answer: C 120 m

    Discuss this question with other students
  13. Exam Pass 2027

    ₦5,000 once

    12 down. Want to know why each answer is right?

    This page gives you WAEC 2021. The Exam Pass explains every answer and opens WAEC Physics 1988–2020 too.

    • Every WAEC Physics paper back to 1988
    • A worked explanation for every answer
    • Timed mock exams and the AI tutor

    WAEC WASSCE starts 11 May 2027

    Until 31 July 2027. Bank transfer, card or USSD. Your pass opens in the app with the same email.

  14. 13.
    According to Pascal's principle, the pressure in a fluid is always?
    1. A.dependent on density of the fluid.
    2. B.distributed partially in all directions.
    3. C.transmitted equally in all directions.
    4. D.increasing with height.
    Show answer

    Answer: C transmitted equally in all directions.

    Discuss this question with other students
  15. 14.
    An atom that emits an a-particle?
    1. A.may become a different element.
    2. B.becomes a different isotope of the element.
    3. C.daughter with increased mass.
    4. D.becomes a daughter of a different element always.
    Show answer

    Answer: A may become a different element.

    Discuss this question with other students
  16. 15.
    An electric circuit consists of a resistor. a battery and a key. If the voltage of the battery is increased, there Would be an increase in the?
    1. A.current and resistance only
    2. B.current resistance and temperature
    3. C.current and temperature only
    4. D.resistance and temperature only
    Show answer

    Answer: C current and temperature only

    Discuss this question with other students
  17. 16.
    An electric pressing iron is connected to the mains using an insulated wire. wire becomes very hot. The heat generated in the wire can be minimized by replacing the wire with one of?
    1. A.thinner insulation.
    2. B.greater diameter.
    3. C.smaller diameter.
    4. D.thicker insulation.
    Show answer

    Answer: B greater diameter.

    Discuss this question with other students
  18. 17.
    An ice cube has mass of 20 g at 5°C. Calculate the energy required to raise its temperature to 0°C. [Specific heat capacity of ice = 2.1 J/g°c]
    1. A.105 J
    2. B.100 J
    3. C.42 J
    4. D.210 J
    Show answer

    Answer: D 210 J

    Discuss this question with other students
  19. 18.
    Determine the speed of the wave.
    Diagram for this question
    1. A.64 cm/s
    2. B.32 cm/s
    3. C.24 cm/s
    4. D.72 cm/s
    Show answer

    Answer: D 72 cm/s

    Discuss this question with other students
  20. 19.
    Electric motor primarily converts?
    1. A.electrical energy to chemical energy
    2. B.kinetic energy to potential energy
    3. C.electrical energy to mechanical energy
    4. D.electrical energy to heat energy
    Show answer

    Answer: C electrical energy to mechanical energy

    Discuss this question with other students
  21. 20.
    Formation of hydrogen bubbles at the copper plate of a primary cell is called?
    1. A.polarization.
    2. B.back e.m.f.
    3. C.electrolysis.
    4. D.local action.
    Show answer

    Answer: A polarization.

    Discuss this question with other students
  22. 21.
    If the relative humidity of the atmosphere increases, the rate of evaporation of sweat from the human body?
    1. A.decreases
    2. B.remains the same
    3. C.increases then decreases
    4. D.increases
    Show answer

    Answer: A decreases

    Discuss this question with other students
  23. 22.

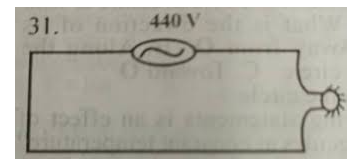

    In the diagram above, a bulb is lit by drawing 2.0A from 440V a.c. source. Calculate the cost of keeping the bulb on for two days at $0.40 per kilowatt-hour.
    Diagram for this question
    1. A.$16.90
    2. B.$84.48
    3. C.$1690.00
    4. D.$8.48
    Show answer

    Answer: A $16.90

    Discuss this question with other students
  24. 23.
    Opening in the eye through which light passes to the retina is called the?
    1. A.pupil
    2. B.cornea
    3. C.iris
    4. D.optic nerve
    Show answer

    Answer: A pupil

    Discuss this question with other students
  25. 24.
    The acceleration of a moving object can be determined from the?
    1. A.slope of its distance-time graph
    2. B.area under its distance-time graph
    3. C.slope of its velocity-time graph
    4. D.area under its velocity-time graph
    Show answer

    Answer: C slope of its velocity-time graph

    Discuss this question with other students
  26. 25.
    The components of vectors Q and R are (-3.0, 5.5) and (9.2, 4.4) respectively. Determine the components of Q + R.
    1. A.(3.7, 7.4)
    2. B.(6.2, 9.9)
    3. C.(2.5, -4 .8)
    4. D.(14.7, 1.4)
    Show answer

    Answer: B (6.2, 9.9)

    Discuss this question with other students
  27. 26.
    The diagram above illustrates the velocity-time graph of a body. Calculate the distance covered by the body during the motion
    Diagram for this question
    1. A.15m
    2. B.84m
    3. C.72m
    4. D.48m
    Show answer

    Answer: C 72m

    Discuss this question with other students
  28. 27.

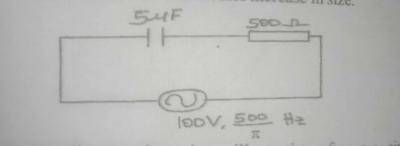

    The diagram above is an illustration of an a.c. circuit.Calculate the reactance of the capacitor.
    Diagram for this question
    1. A.2016Ω
    2. B.2000Ω
    3. C.200Ω
    4. D.4000Ω
    Show answer

    Answer: C 200Ω

    Discuss this question with other students
  29. 28.
    The distance between a node and its adjacent antinode of a transverse wave is equal to?
    1. A.half of the wavelength.
    2. B.the wavelength.
    3. C.thrice the wavelength.
    4. D.quarter of the wavelength.
    Show answer

    Answer: D quarter of the wavelength.

    Discuss this question with other students
  30. 29.
    The following statements about a loudspeaker are correct except?
    1. A.its contains a permanent magnet.
    2. B.sound signal converted to varying current signal enters the speech coil.
    3. C.the current in the speech coil creates a magnetic force on the coil.
    4. D.the magnetic force on the speech coil is uni-directional.
    Show answer

    Answer: D the magnetic force on the speech coil is uni-directional.

    Discuss this question with other students
  31. 30.
    The handle of a screw jack is 35 cm long and the pitch of the screw is 0.5 cm. What force must be applied at the end of the handle to lift a load of 2000N, if the efficiency of the jack is 30% [π = ]?
    1. A.152.0N
    2. B.132.0N
    3. C.15.2N
    4. D.440.0N
    Show answer

    Answer: C 15.2N

    Discuss this question with other students
  32. 31.
    The inductive reactance in a circuit of frequency 100Hz is 1ohms. Calculate the inductance of the inductor[π = 3.14]
    1. A.2.00 x 10 H
    2. B.1.59 x 10 H
    3. C.1.09 x 10 H
    4. D.6.28x 10 H
    Show answer

    Answer: B 1.59 x 10 H

    Discuss this question with other students
  33. 32.
    The reason for laminating the soft iron core of a transformer is to?
    1. A.reduce eddy current.
    2. B.reduce magnetic flux.
    3. C.increase the magnetic flux.
    4. D.reduce its efficiency.
    Show answer

    Answer: A reduce eddy current.

    Discuss this question with other students
  34. 33.

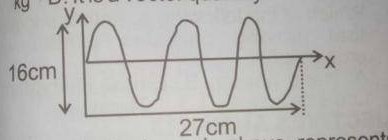

    The sketched graph above represents a progressive wave moving from the left to the right. The period of the wave is 0.125s. Determine the values of the amplitude and wavelength, respectively, of the wave.
    Diagram for this question
    1. A.8 cm; 27 cm
    2. B.8 cm; 9 cm
    3. C.4 cm; 9 cm
    4. D.16 cm; 27 cm
    Show answer

    Answer: B 8 cm; 9 cm

    Discuss this question with other students
  35. 34.
    Which of the arrangements of radiations below shows decreasing order of wavelengths?
    1. A.X-rays> radio waves > infrared radiations
    2. B.Radio waves> infrared radiations > X-rays
    3. C.Infrared radiations > radio waves > X-rays
    4. D.X-rays> infrared radiations > radio waves
    Show answer

    Answer: B Radio waves> infrared radiations > X-rays

    Discuss this question with other students
  36. 35.
    Which of the following actions will increase capacitance of a parallel plate capacitor? I. Decreasing the distance between the plates II. Increasing the distance between the plates. III. Increasing the area of the plates overlap. IV. Avoiding the use of dielectric between the plate
    1. A.I and III only
    2. B.II and III only
    3. C.I and IV
    4. D.. III and IV only
    Show answer

    Answer: A I and III only

    Discuss this question with other students
  37. 36.
    Which of the following curved surfaces will produce a real image? I. Concave mirror II. Convex mirror III. Diverging lens IV. Converging lens
    1. A.I and III only
    2. B.I, II and IV only
    3. C.II, III and V only
    4. D.I and IV only
    Show answer

    Answer: D I and IV only

    Discuss this question with other students
  38. 37.
    Which of the following factors does not affect the rate of evaporation of a liquid?
    1. A.temperature
    2. B.volume
    3. C.wind
    4. D.surface area
    Show answer

    Answer: B volume

    Discuss this question with other students
  39. 38.
    Which of the following factors is not among that determines the resistance of a wire?
    1. A.mass
    2. B.cross-sectional area
    3. C.length
    4. D.material
    Show answer

    Answer: A mass

    Discuss this question with other students
  40. 39.
    Which of the following quantities is not an example of force?
    1. A.Mass
    2. B.Tension
    3. C.Weight
    4. D.Friction
    Show answer

    Answer: A Mass

    Discuss this question with other students
  41. 40.
    Which of the following scientist suggested that moving particles exhibit wave properties?
    1. A.Isaac Newton
    2. B.Ernest Rutherford
    3. C.Louis de Broglie
    4. D.J.J. Thompson
    Show answer

    Answer: C Louis de Broglie

    Discuss this question with other students
  42. 41.
    Which of the following set of quantities have members which are all vectors?
    1. A.Pressure, energy and force
    2. B.Force, displacement and momentum
    3. C.Distance, acceleration and work
    4. D.Density, volume and weight
    Show answer

    Answer: B Force, displacement and momentum

    Discuss this question with other students
  43. 42.
    Which of the following statements about distance and displacement is not correct?
    1. A.Displacement is a vector quantity
    2. B.Distance has dimension
    3. C.Displacement is measured in meters
    4. D.Distance is a vector quantity
    Show answer

    Answer: D Distance is a vector quantity

    Discuss this question with other students
  44. 43.
    Which of the following statements about the molecules of solids and liquids is correct? They both
    1. A.have weak attraction.
    2. B.have wide separations.
    3. C.exhibit random motion.
    4. D.exhibit vibratory motion.
    Show answer

    Answer: D exhibit vibratory motion.

    Discuss this question with other students
  45. 44.
    Which of the following statements about the universal gravitational constant, G, is true?
    1. A.It is fundamental quantity
    2. B.It has dimension M-¹L³T-²
    3. C.Its S.I. unit is N m kg
    4. D.It is a vector quantity
    Show answer

    Answer: B It has dimension M-¹L³T-²

    Discuss this question with other students
  46. 45.
    Which of the following statements best describes the particles in a solid at room temperature? They are
    1. A.far apart and moving randomly.
    2. B.close together and vibrating.
    3. C.close together and stationary.
    4. D.close together and moving randomly.
    Show answer

    Answer: B close together and vibrating.

    Discuss this question with other students
  47. 46.
    Which of the following statements is an effect of compressing gas molecules at constant temperature?
    1. A.The pressure on the molecules decreases.
    2. B.The molecules gain more kinetic energy.
    3. C.The molecules make more impact per second on the walls of the container.
    4. D.The molecules increase in size.
    Show answer

    Answer: C The molecules make more impact per second on the walls of the container.

    Discuss this question with other students
  48. 47.
    Which of the following statements is not a characteristic of a plane progressive wave?
    1. A.Energy travels out through the medium
    2. B.Neighboring points along the profile possess different amplitudes
    3. C.Neighboring points along the profile possess the same amplitude
    4. D.Neighboring particles vibrate with different phase
    Show answer

    Answer: B Neighboring points along the profile possess different amplitudes

    Discuss this question with other students
  49. 48.
    Which of the following units is equivalent to the unit of electric current?
    1. A.C s
    2. B.W
    3. C.J s
    4. D.C
    Show answer

    Answer: A C s

    Discuss this question with other students
  50. 49.

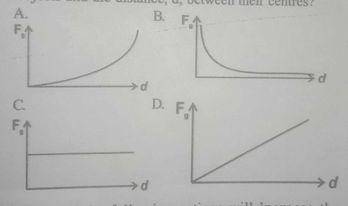

    Which of the sketched graphs above illustrates the correct variation of the gravitational force, Fg between two objects and the distance, d, between the centre
    Diagram for this question
    1. A.A
    2. B.B
    3. C.C
    4. D.D
    Show answer

    Answer: B B

    Discuss this question with other students

Printing is turned off here to protect the question bank. Get the SmarTest app to study offline.

More free Physics papers

Exam Pass 2027

₦5,000 once

You have WAEC 2021. Get Physics 1988–2020 too.

The latest five years are free here. The Exam Pass adds every year we hold, a worked explanation for each answer and timed mock exams, on your phone and computer, offline.

  • Every WAEC Physics paper back to 1988
  • A worked explanation for every answer
  • Timed mock exams and the AI tutor

WAEC WASSCE starts 11 May 2027

Until 31 July 2027. Bank transfer, card or USSD. Your pass opens in the app with the same email.

  • Paid through PaystackWe never see or store your card.
  • Unlocked in minutesSign in with the email you paid with.
  • Ibora Digital Labs LimitedRegistered in Nigeria, Abuja.
  • A real team helpsChat with us on this site, or email.

Not ready to pay? The app is free to start.

Get the app
